ANSI STANDARDS
FHT-INTEC 112-A150

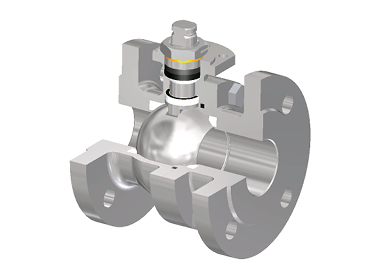

SOFT SEATED, TWO PIECE FLOATING BALL VALVE
1/2” – 6” CLASS 150
DOUBLE PACKING & DOUBLE STEM SEAL
| SIZE (“) | L (mm) | H2 (MM) | L2 (MM) | Top FlANGE ISO | WEIGHT (kg) | TORQUE (Nm*) |
|---|---|---|---|---|---|---|
| 1/2 | 108 | 95 | 160 | F05 | 2.4 | 9 |
| 3/4 | 117 | 101 | 160 | F05 | 2.9 | 11 |
| 1 | 127 | 115 | 180 | F05 | 4.2 | 13 |
| 1 1/4 | 140 | 125 | 180 | F05 | 5.9 | 24 |
| 1 1/2 | 165 | 135 | 300 | F07 | 7.7 | 32 |
| 2 | 178 | 145 | 300 | F07 | 11.6 | 44 |
| 2 1/2 | 190 | 157 | 300 | F07 | 17 | 55 |
| 3 | 203 | 197 | 450 | F10 | 23.8 | 90 |
| 4 | 229 | 212 | 450 | F10 | 36 | 120 |
| 5 | 254 | 230 | 800 | F12 | 54 | 250 |
| 6 | 394 | 263 | 800 | F12 | 77 | 390 |
| 8 | 457 | 310 | 800 | F14 | 150 | 415 |
*Calculated based on normal ºC. To be used as a guide for actuator selection. 1.3~1.5 Safety Factor is recommended for actuator sizing. It may be changed depending on seat materials.
STANDARDS
DESIGN
EN12516-1&2 ANSI B16.34&API 6D
FACE to face
ASME B16.10
FLANGED ENDS
ASME B16.5
TOP FLANGE
ISO 5211
PRESSURE TESTS
EN12266-1/API 598/API 6D
VISUAL INSPECTION
MSS-SP-55
MAIN FEATURES
Bidirectional
Split body
Flanged Ends
Full bore
Floating ball Soft seat
Pressure relieving seats
Anti blow out stem
Antistatic device
Locking device
Fire Safe
MATERIALS
BODY
Carbon steel , stainless steel, Duplex, Superduplex, Exotic materials…
TRIM
Stainless steel, Duplex, Superduplex, Exotic materials…

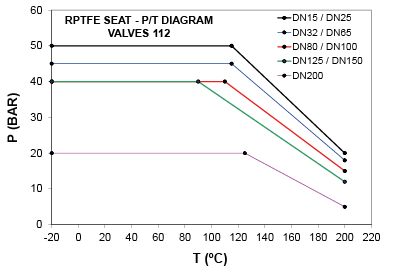

SEATS
PTFE, Reinforced PTFE, Viton, Nylon, Kelf, Devlon…
SPECIAL REQUIREMENTS
Heating jacket, cryogenic designs, all kind of operated, painting and coating
